680.4 kWp Solar Plant in Ankara on ISOGROUND TWO Ground Mounts

Module block and waiting frames, aerial view
In brief

In 2023 ISOTEC designed, manufactured and delivered the ISOGROUND TWO mounting system for a 680.4 kWp ground-mount solar plant in Ankara, Türkiye. The plant uses 35 tables in a 2V18 layout, a 25° module tilt and steel posts driven 1.5 m into the ground.

The project

A module block and frames awaiting modules

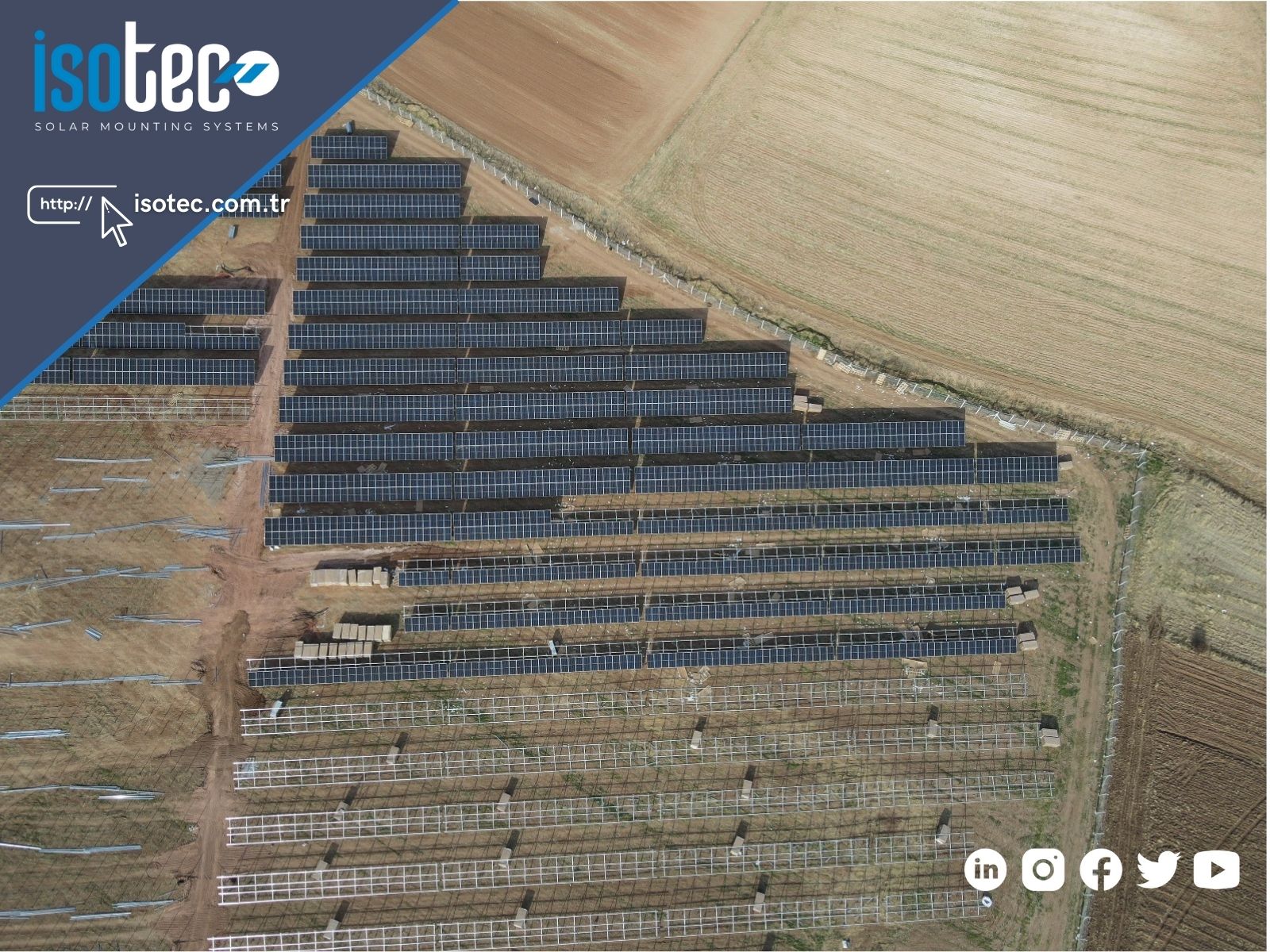

The plant was built in Ankara on an open site surrounded by farmland. The aerial photo shows the installation under way: in a triangular block the modules are already mounted, while below it bare steel table frames wait for theirs.

For this plant ISOTEC prepared the ISOGROUND TWO double-post system in a 2V18 layout. The 35 tables carry 1,260 modules of 540 Wp (2285 × 1134 mm) in total, giving 680.4 kWp installed capacity.

The posts were driven 1.5 m into the ground. S350GD steel beams on S355 front and rear posts carry 1.3 mm 6063-T66 aluminium purlins; the modules sit at a 25° tilt with their lower edge 600 mm above ground. Joints use A2-70 stainless steel bolts.

Section · drawn to scale
25°600mm2,550 mm1,500 mm2 modules portrait (2V) · 2 × 2285 mmrafter + purlinsfront postrear postdriven pile, no concreteSOUTHNORTH
Dimensions from this project's project summary sheet. Lower module edge 600 mm above ground, 2,550 mm between posts. Bracing omitted for clarity.
Technical details
Modules
1,260 × 540 Wp
Module size
2285 × 1134 mm
Tables
35 tables · 36 modules
Tilt
25°
Ground clearance
600 mm
Foundation
Driven piles · 1.5 m
Post · beam
S355 · S350GD
Purlins
Aluminium 6063-T66
Bolts
A2-70 stainless
Post spacing
2,550 mm
Scope
Design, production, delivery
Location
Ankara, Türkiye
FAQ

What is the installed capacity of this plant?

680.4 kWp, from 1,260 modules of 540 Wp on 35 tables.

What size are the modules?

2285 × 1134 mm, rated 540 Wp.

How were the posts fixed in the ground?

The posts were driven 1.5 m into the ground.

Which steel grades are used in the structure?

The posts are S355 and the beams S350GD steel; the purlins are aluminium.
