Flat-roof PV · Germany · 2023

341.12 kWp Flat-Roof Solar Plant in Germany on ISOFLAT D13

Ballast slabs, rails and feet
In brief

In 2023 ISOTEC prepared and shipped the ISOFLAT D13 mounting system for a 341.12 kWp flat-roof PV plant in Germany. Aluminium rails and BS3 feet are held down with ballast slabs on the roof.

The project

A flat roof held down by ballast

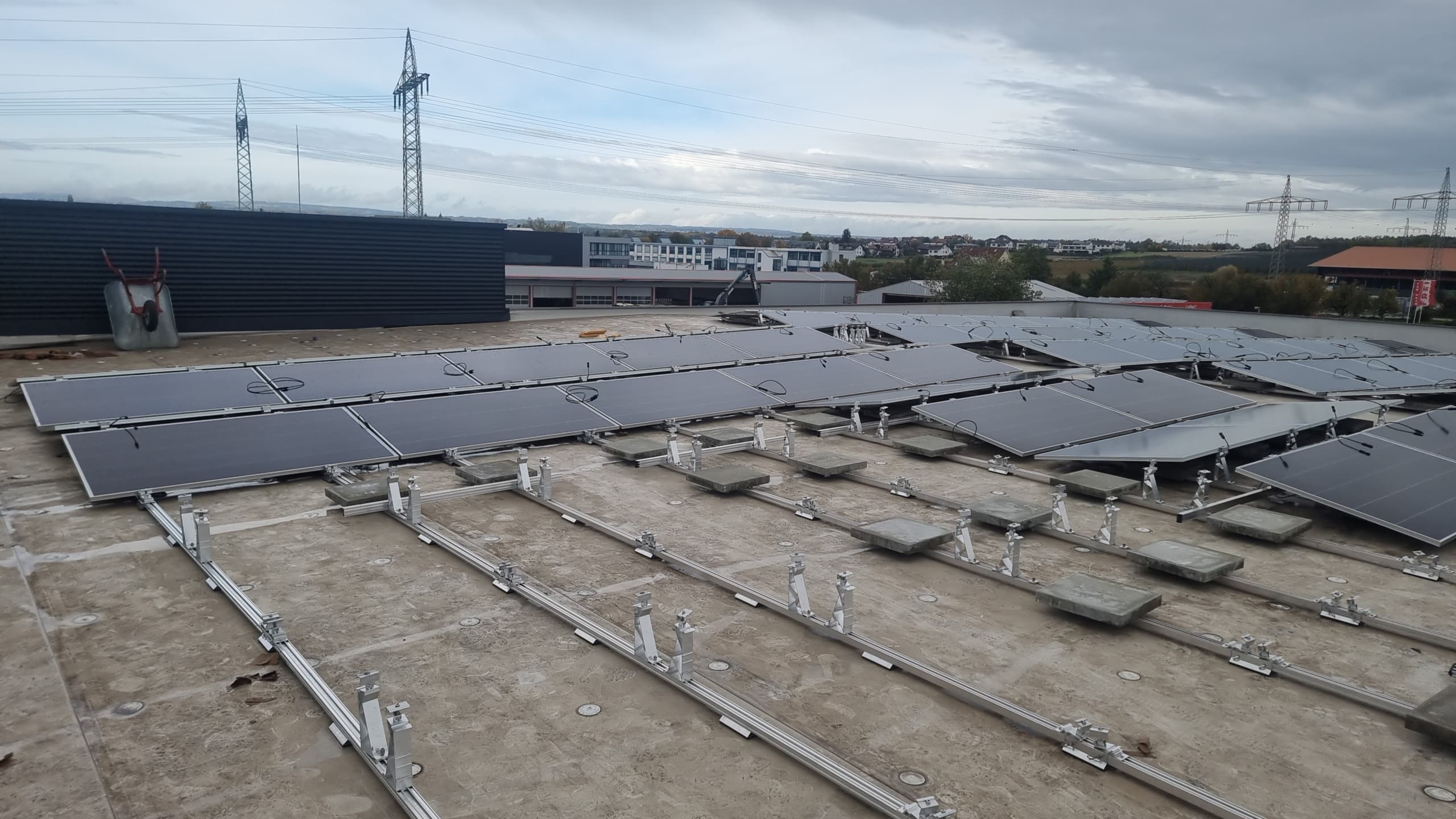

The roof in the photo is a wide, flat building roof. At the moment of the shot, modules are in place in one area while another shows only aluminium rails and feet.

We built the ISOFLAT D13 flat-roof system here with rails and BS3 feet, with ballast slabs set between the feet and the roof covering left unpenetrated. The September 2023 shipping list shows 840 BS3 feet, 390 TFX-2400 main-rail sets and 510 TFX-1400 rails.

Section · schematic
13°13°EASTWESTBS3 double rear legballastTFX-2400 rail · no drilling
The drawing shows the general layout of the ISOFLAT D13 system and contains no dimensions from this project.
Technical details
Capacity
341.12 kWp
BS3 feet
840 pcs
Main rail
TFX-2400 · 390 sets
Additional rail
TFX-1400 · 510 pcs
Hold-down
Ballast slabs
Net weight (shipped)
3,302 kg
FAQ

Which mounting system was used in this project?

ISOTEC's flat-roof system ISOFLAT D13.

Was the roof membrane penetrated?

No. The system is held down by ballast slabs, which can be seen between the feet in the photo.

Which parts were shipped?

The shipping list includes BS3 feet and TFX-2400 and TFX-1400 rails: 840 BS3 feet, 390 TFX-2400 sets and 510 TFX-1400 rails.

From the same country

More flat-roof projects in Germany

Planning a flat-roof project?

Send us the roof height, membrane type and ballast capacity, and we will prepare an ISOFLAT quotation.
