3.00 MWp Solar Plant in Çankırı on ISOGROUND TWO Ground Mounts

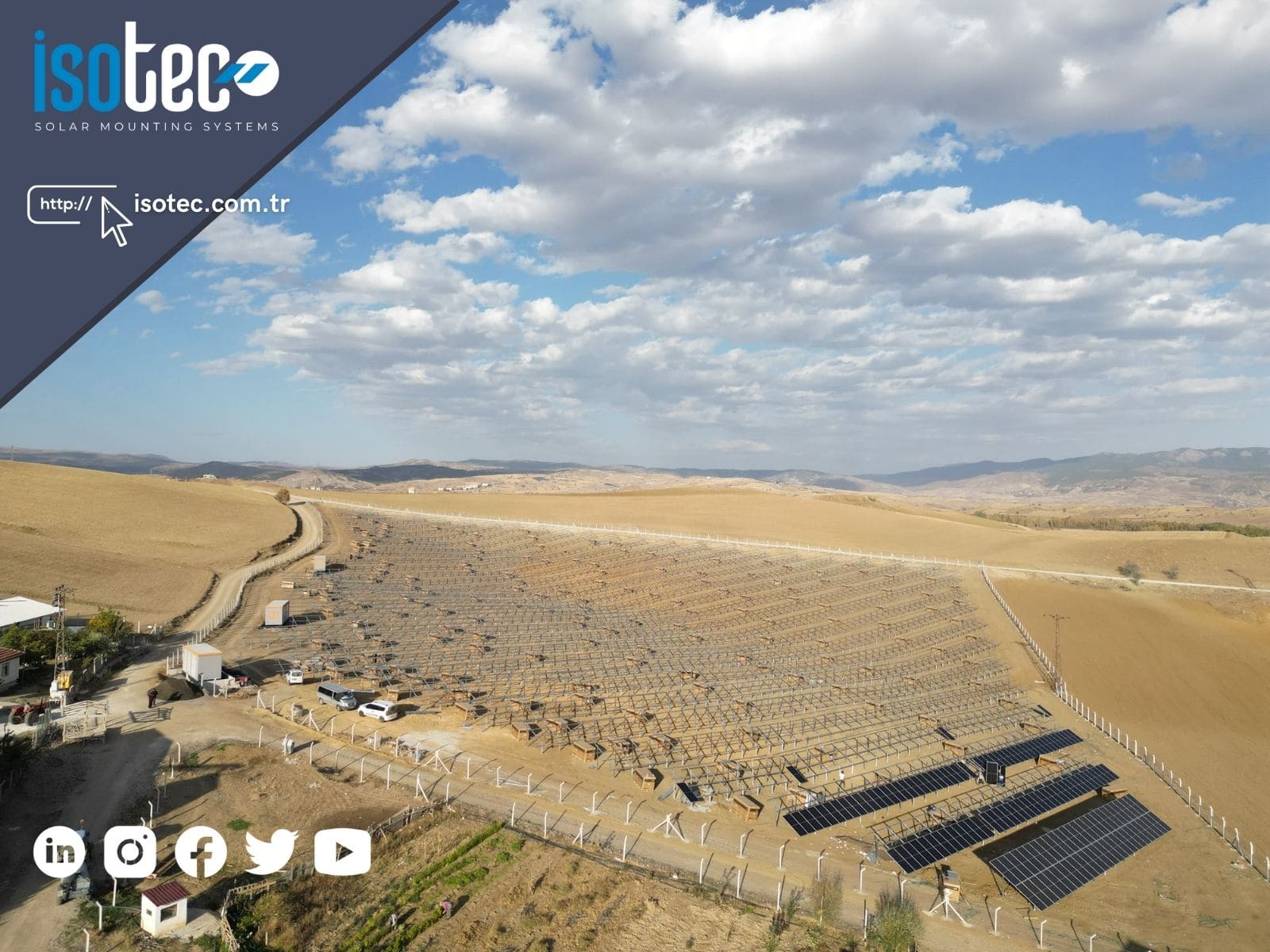

Steel frames on the hillside and the first modules, aerial view
In brief
In 2023 ISOTEC designed, manufactured and delivered the ISOGROUND TWO mounting system for a 3.00 MWp ground-mount solar plant in Şabanözü, Çankırı. The plant uses 112 tables, a 30° module tilt and steel piles driven 1.5 m into the ground, with a project-specific structural report.
The project
A hillside plant at 1,050 metres
The plant sits on a hillside in Şabanözü, Çankırı, at an altitude of 1,050 m. The ground under its 5,460 modules is sloped and rugged; the site is fenced, with mountains rising behind.
For this site ISOTEC designed the ISOGROUND TWO ground-mount system with two table types: 98 tables of 2V26 (52 modules each) and 14 tables of 2V13 (26 modules each). The double-post frames carry 2279 × 1134 mm modules in portrait, in two rows, at a 30° tilt, with the lower module edge 500 mm above ground. The longest table runs beyond 30 metres.
The posts were driven 1.5 m into the ground. Connections use A2-70 stainless and 8.8 ZnNi-coated bolts. The structural report written for this site is based on a snow load of 1.32 kN/m², a wind pressure of 0.49 kN/m² and seismic loads per the Turkish building earthquake code TBDY 2018.
Section · drawn to scale
Dimensions from this project's summary form and assembly drawing. Lower module edge 500 mm above ground, 2,400 mm between posts. Bracing omitted for clarity.
Technical details
Modules
5,460 × 550 Wp
Module size
2279 × 1134 mm
Tables
112 tables · 98 + 14
Tilt
30°
Ground clearance
500 mm
Foundation
Driven piles · 1.5 m
Fasteners
A2-70 · 8.8 ZnNi
Snow · wind
1.32 · 0.49 kN/m²
Seismic
PGA 0.265 g
Altitude
1,050 m
Structural report
Project-specific
Scope
Design, production, delivery
FAQ
Which mounting system was used at this plant in Çankırı?
ISOTEC's double-post ground-mount system ISOGROUND TWO. There are 112 tables in total: 98 of 2V26 and 14 of 2V13.
How were the posts fixed in the ground?
The posts were driven 1.5 m into the ground.
Which loads was the structure designed for?
The structural report for this site is based on a snow load of 1.32 kN/m² and a wind pressure of 0.49 kN/m²; seismic loads follow TBDY 2018.
What is the plant's capacity and module count?
The plant has 3.00 MWp, built from 5,460 modules of 550 Wp.
