2.92 MWp Solar Plant in Ankara on ISOGROUND TWO Ground Mounts

The plant during installation, aerial view
In brief

In 2023 ISOTEC designed, manufactured and delivered the ISOGROUND TWO mounting system for a 2.92 MWp ground-mount solar plant in Ankara, Türkiye. The plant uses 150 tables in a 2V18 layout, a 25° module tilt and steel posts driven 1.5 m into the ground.

The project

Steel frames and modules side by side

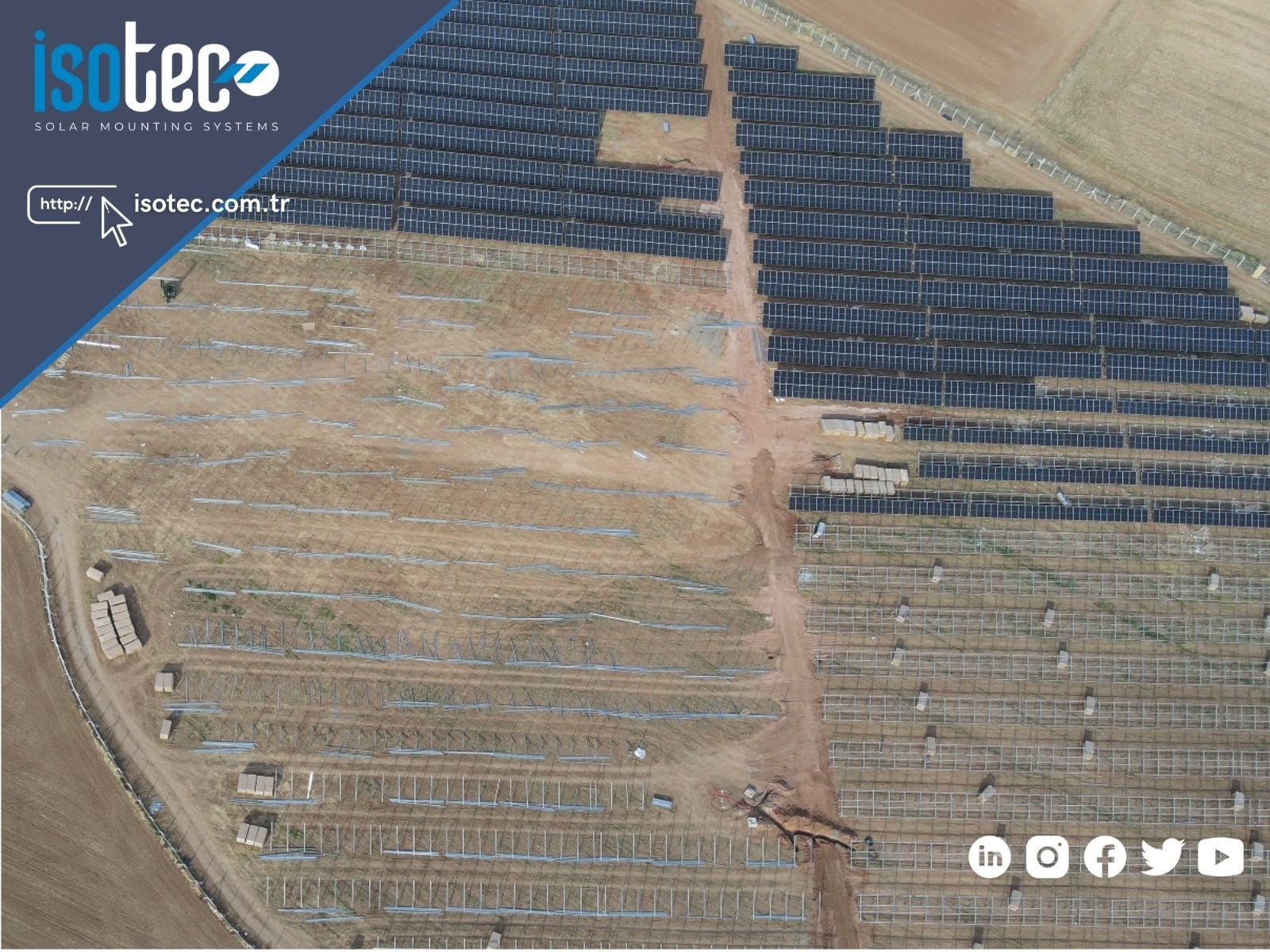

The plant was built in Ankara on an open site surrounded by farmland. The aerial photo shows the installation under way: steel table frames are lined up on one side, while on the other the tables already carry their modules.

For this site ISOTEC designed the ISOGROUND TWO ground-mount system in a 2V18 layout: each table carries 36 modules of 540 Wp in two portrait rows. The plant has 150 tables and 5,400 modules in total; with aluminium purlins on steel posts and beams, the structure is the steel–aluminium configuration.

The posts were driven 1.5 m into the ground. The front post is a C 110x60x15x3 profile and the rear post a C 100x40x15x3 profile (S355); the beam is S350GD steel and the purlins are 1.3 mm 6063-T66 aluminium. Joints use A2-70 stainless steel bolts; the lower module edge sits 600 mm above ground at a 25° tilt.

Section · drawn to scale
25°600mm2,550 mm1,500 mm2 modules portrait (2V) · 2 × 2285 mmrafter + purlinsfront postrear postdriven pile, no concreteSOUTHNORTH
Dimensions from this project's project summary sheet. Lower module edge 600 mm above ground, 2,550 mm between posts. Bracing omitted for clarity.
Technical details
Modules
5,400 × 540 Wp
Module size
2285 × 1134 mm
Tables
150 tables · 36 modules
Tilt
25°
Ground clearance
600 mm
Foundation
Driven piles · 1.5 m
Post · beam
S355 · S350GD
Purlins
Aluminium 6063-T66
Bolts
A2-70 stainless
Post spacing
2,550 mm
Scope
Design, production, delivery
Location
Ankara, Türkiye
FAQ

Which mounting system was used at this plant in Ankara?

ISOTEC's double-post ground-mount system ISOGROUND TWO. The tables use a 2V18 layout with 36 portrait modules each; there are 150 tables in total.

How were the posts fixed in the ground?

The posts were driven 1.5 m into the ground.

How many modules does the plant have?

5,400 modules of 540 Wp, for a total installed capacity of 2.92 MWp.

What are the purlins made of?

The purlins are 1.3 mm 6063-T66 aluminium; the posts and beams are steel.
