777.6 kWp Solar Plant in Ankara on ISOGROUND TWO Ground Mounts

Table frames erected in rows, aerial view
In brief

In 2023 ISOTEC designed, manufactured and delivered the ISOGROUND TWO mounting system for a 777.6 kWp ground-mount solar plant in Ankara, Türkiye. The plant uses 40 tables in a 2V18 layout, a 25° module tilt and steel posts driven 1.5 m into the ground.

The project

Table frames row after row

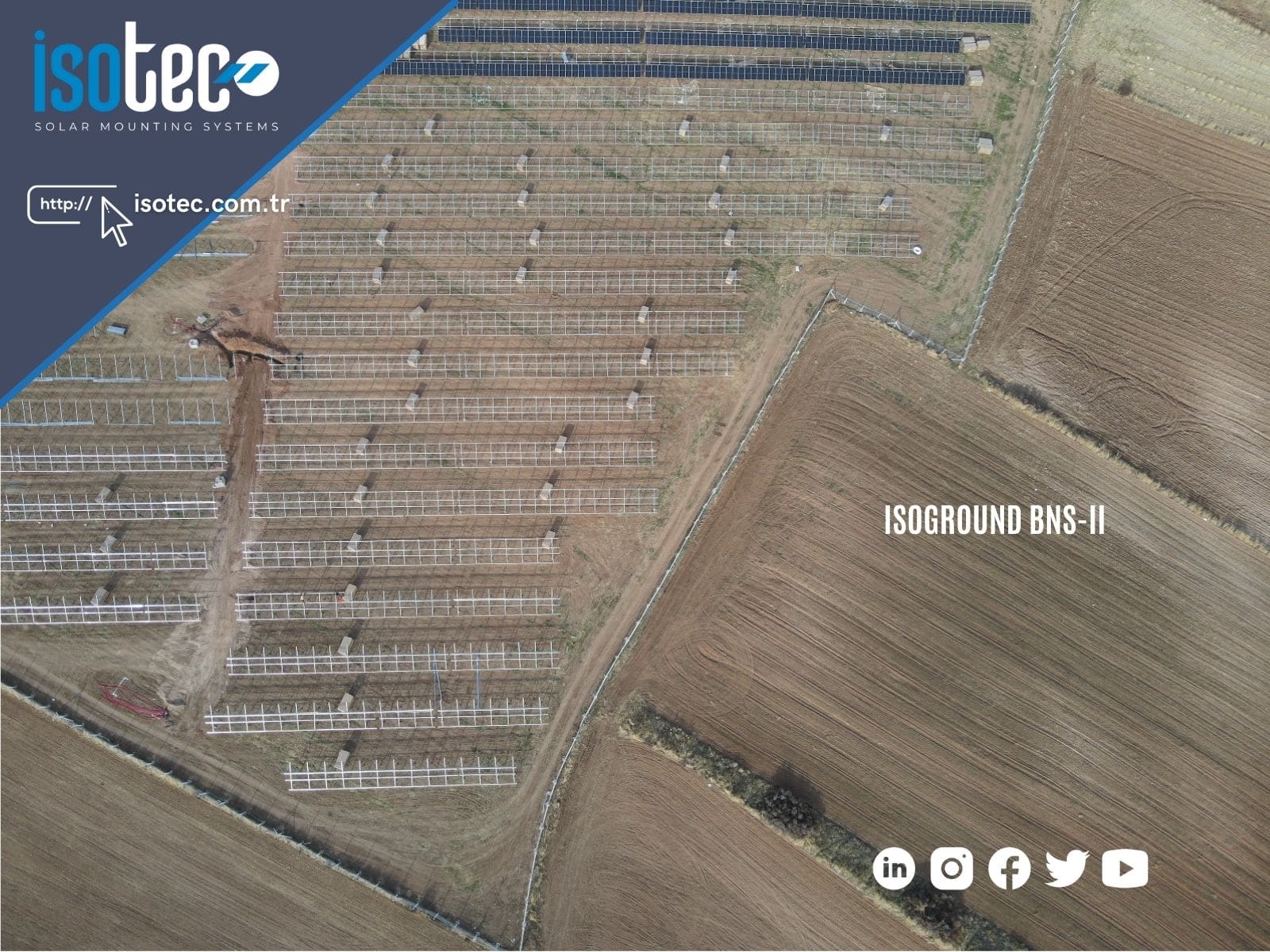

The plant was built in Ankara on an open site surrounded by farmland. The aerial photo shows the installation under way: white steel table frames are erected row after row, and at the top the first rows already carry their modules.

All 40 tables on the site stand on ISOGROUND TWO double-post frames in a 2V18 layout: aluminium purlins sit on beams carried by pairs of front and rear posts, and each table holds 36 modules of 540 Wp in two rows. The 1,440 modules add up to 777.6 kWp.

The front post is a C 110x60x15x3 profile and the rear post a C 100x40x15x3 profile (S355), both driven 1.5 m into the ground. The beam is S350GD steel and the purlins are 1.3 mm 6063-T66 aluminium; joints use A2-70 stainless steel bolts. The lower module edge sits 600 mm above ground at a 25° tilt.

Section · drawn to scale
25°600mm2,550 mm1,500 mm2 modules portrait (2V) · 2 × 2285 mmrafter + purlinsfront postrear postdriven pile, no concreteSOUTHNORTH
Dimensions from this project's project summary sheet. Lower module edge 600 mm above ground, 2,550 mm between posts. Bracing omitted for clarity.
Technical details
Modules
1,440 × 540 Wp
Module size
2285 × 1134 mm
Tables
40 tables · 36 modules
Tilt
25°
Ground clearance
600 mm
Foundation
Driven piles · 1.5 m
Post · beam
S355 · S350GD
Purlins
Aluminium 6063-T66
Bolts
A2-70 stainless
Post spacing
2,550 mm
Scope
Design, production, delivery
Location
Ankara, Türkiye
FAQ

How are the tables supported?

Each table stands on a pair of front and rear posts driven into the ground, with steel beams and aluminium purlins.

How many tables and modules does the plant have?

40 tables carrying 1,440 modules of 540 Wp.

What are the tilt and ground clearance?

The tilt is 25° and the lower module edge is 600 mm above ground.

Which bolts were used in the joints?

A2-70 stainless steel bolts.
